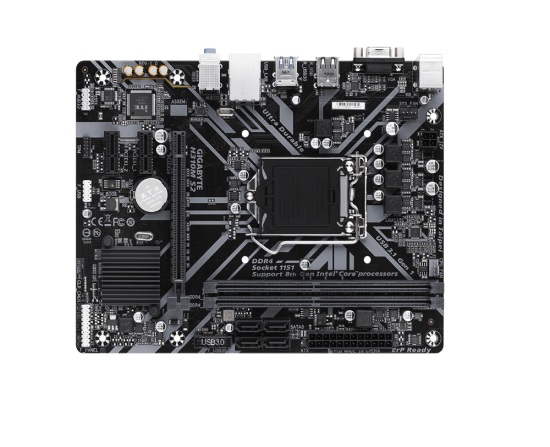

Gigabyte GA-H310-S2 Motherboard H310 LGA 1151

Name: Gigabyte GA-H310-S2 Motherboard H310 LGA 1151
Brand: Gigabyte
SKU: 001314
Price: 80.00 USD
Availability: OutOfStock

BrandGigabyte SKU001314

Out of stock

Contact our team and we will help you find an alternative.

Price in USD

$80.00

Ordering is currently unavailableOur team can help with availability or alternatives.

Contact our team

Ask on WhatsApp

Clear availabilityKnow the ordering status first Local adviceHelp from our Beirut team After-sale supportSupport beyond your purchase

Everything in one place

Product information

Jump to specifications

Overview

About this product

* Supports 9th and 8th Gen Intel® Core™ Processors
* Dual Channel Non-ECC Unbuffered DDR4
* 8-Channel HD Audio with High Quality Audio Capacitors
* GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
* CEC 2019 Ready, Save Power With a Simple Click
* Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
* All new GIGABYTE™ APP Center, simple and easy use
* Anti-Sulfur Resistors Design

Technical details

Specifications

Category: Computer parts / Motherboards
Brand: Gigabyte
Type: Intel Motherboards
Audio: 2/4/5.1/7.1-channel, High Definition Audio, Realtek ALC887 codec
Back Panel Connectors: 1x D-Sub port, 1x PS/2 Keyboard port, 1x PS/2 mouse port, 1x RJ-45 port, 1x serial port, 2x USB 2.0/1.1 ports, 2x USB 3.0/2.0 ports, 3x audio jacks (Line In, Line Out, Mic In)
Chipset: Intel H310 Express Chipset
CPU: Support for 9th and 8th Generation, Support for Intel Celeron processors in the LGA1151 package, Support for Intel Core i3 processors, Support for Intel Core i5 processors, Support for Intel Core i7 processors, Support for Intel Core i9 processors
Expansion Slots: 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots
Interface: 4 x SATA 6Gb/s connectors
Internal I/O Connectors: 1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x Clear CMOS jumper, 1x CPU fan header, 1x front panel audio header, 1x front panel header, 1x system fan header, 1x Trusted Platform Module (TPM) header, 1x USB 2.0/1.1 headers, 1x USB 3.1 Gen 1 header, 4x SATA 6Gb/s connectors
LAN: Realtek GbE LAN chip (10/100/1000 Mbit)
Memory: 2x DDR4 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, Support for DDR4 2666/2400/2133 MHz memory modules
Onboard Graphics: 1 x D-Sub port, supporting a maximum resolution of 1920x1200, Maximum shared memory of 1 GB
Operation system: Windows 10, Windows 7, Windows 8, Windows 8.1
USB Connectors: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Availability: Out of stock
