* Supports 7th / 6th Generation Intel Core Processors
* Dual Channel DDR4, 2 DIMMs
* 8-channel HD Audio with High Quality Audio Capacitors
* Audio Noise Guard with LED Trace Path Lighting
* Realtek GbE LAN with cFosSpeed Internet Accelerator Software
* All new GIGABYTE™ APP Center, simple and easy use
* GIGABYTE UEFI DualBIOS Technology
* Support Intel Small Business Basics

• CPU:

  Support for 7th/6th Generation, Support for Intel Celeron processors in the LGA1151 package, Support for Intel Core i3 processors, Support for Intel Core i5 processors, Support for Intel Core i7 processors

• Chipset:

  Intel H110 Express Chipset

• Memory:

  2x DDR4 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, Support for DDR4 2400/2133 MHz memory modules

• Onboard Graphics:

  1 x D-Sub port, supporting a maximum resolution of 1920x1200, Maximum shared memory of 1 GB

• Audio:

  2/4/5.1/7.1-channel, High Definition Audio, Realtek Audio CODEC, Support for S/PDIF Out

• LAN:

  Realtek GbE LAN chip (10/100/1000 Mbit)

• Expansion Slots:

  1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots

• Interface:

  4 x SATA 6Gb/s connectors

• USB Connectors:

  4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header), Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors:

  1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 1x Clear CMOS jumper, 1x CPU fan header , 1x front panel audio header, 1x front panel header, 1x S/PDIF Out header, 1x system fan header, 1x Trusted Platform Module (TPM) header, 1x USB 3.0/2.0 header, 2x USB 2.0/1.1 headers , 4x SATA 6Gb/s connectors

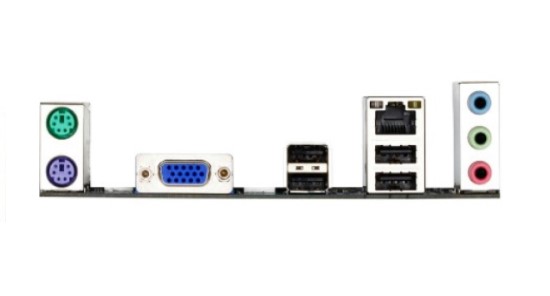

• Back Panel Connectors:

  1x D-Sub port, 1x PS/2 Keyboard port, 1x PS/2 mouse port, 1x RJ-45 port, 1x serial port, 2x USB 2.0/1.1 ports, 2x USB 3.0/2.0 ports, 3x audio jacks (Line In, Line Out, Mic In)

• Operation system:

  Windows 10, Windows 7, Windows 8.1
